Shackles – Sling Saver

Add to quote

(03) 8360 8910

Category: Rigging Equipment

Description
Hire Enquiry

Description

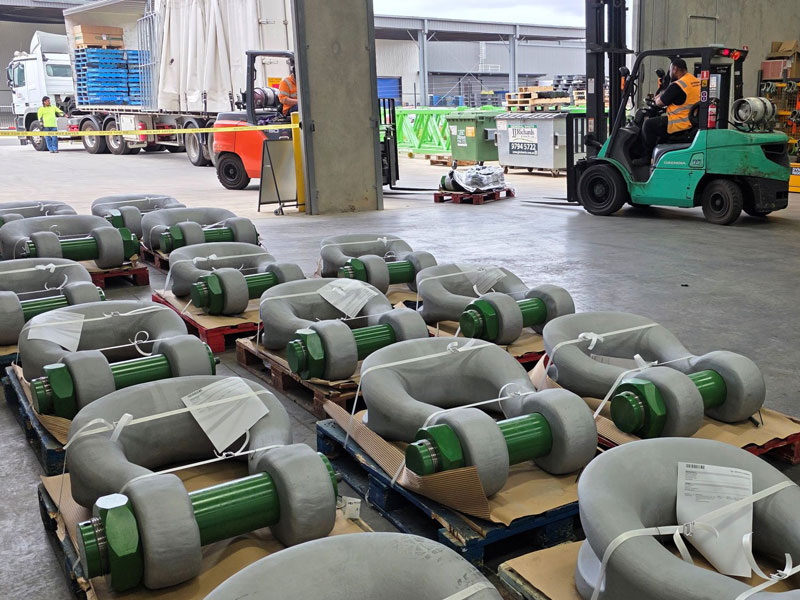

Dynamic Rigging Hire has a selection of Yoke wide body and Van Beest sling saver shackles for hire in sizes from 7t through the entire range to 250t. Both Yoke and Van Beest are quality reputable brands

We also offer a range of standard shackles for hire.

Van Beest Sling Saver

WLL	Dia Body	Dia Pin	Dia Eye	Width eye	Width inside	Length inside	Width bow	Length	Length bolt	Width	Nut	Bearing surface	Weight
t	A	B	C	D	E	F	G	H	I	J	K	l	KG.
40	55	51	109	45	84	199	140	331	252	235	38	97	21
55	60	57	115	55	90	240	160	389	294	270	45	100	30
75	68	70	125	54	110	290	185	473	327	317	54	120	48
125	85	80	154	85	137	366	220	583	426	390	64	150	92
150	94	95	179	89	147	391	253	645	435	434	50	170	140
200	110	105	199	100	158	481	280	759	470	482	50	205	205
250	126	120	227	110	179	542	300	859	519	530	60	240	264

DOWNLOAD VAN BEEST BROCHURE

Yoke Wide Body

WLL (t)	A	B	C	D	E	G	H	K	R	W	Net w
(Kg)	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)
7	91	41	18	22	32	46	150	104	32	33	1.7
12.5	118	54	23	29	41	61	194	140	35	44	3.8
18	148	64	30	36	51	68	238	172	38	54	6.7
30	176	80	35	45	64	89	289	216	45	60	12.5
