Load Cells – Tension
Description
We stock Delphi load cells available for rental and purchase, in our rental fleet we hold tension load cells in sizes from 6.5t through to 150t all calibrated by the manufacturer or a third party NATA endorsed testing laboratory. Delphi load cells are Australian made of the highest quality, the load cells have accuracy of +/-0.1%, in many sizes we have matching sets of four load cells for applications calling for multiple load cells.

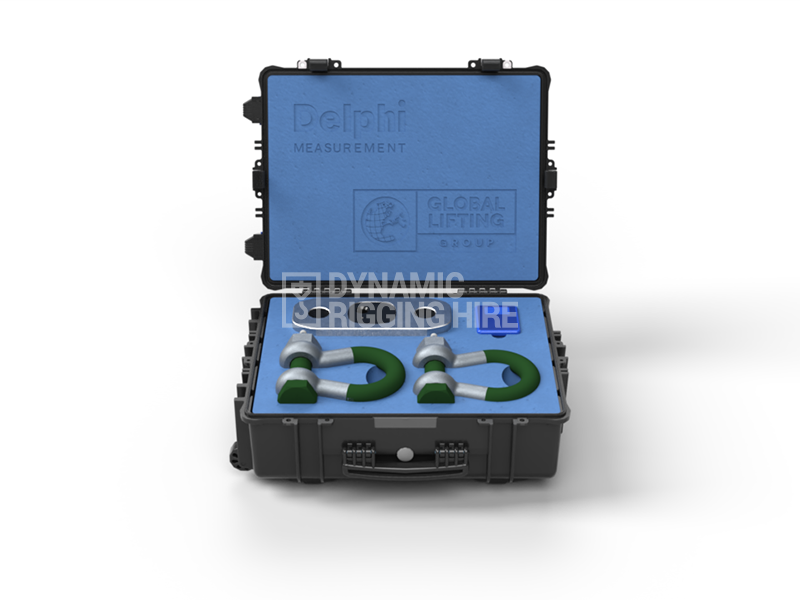

For customers looking to purchase a load cell we recommend the 104TWK kits, these are available from 5t to 30t and feature a sturdy travel case that accommodates a pair of super shackles so you’ll never loose the shackles and makes travelling to sites very easy. We can supply tension cells up to 250t, load cell shackle pins, shear beams, compression load cells and more so if you’re looking to purchase load cells please call our office to discuss your requirements.
| Capacity (WLL) | Radio signal range | Wireless signal | NATA Calibration | Class A from | Accuracy | Resolution |
| 6.5t | 1000m | Yes | Yes | 500kg | ±0.2% | 1kg |
| 12t | 1000m | Yes | Yes | 500kg | ±0.2% | 1kg |
| 25t | 1000m | Yes | Yes | 500kg | ±0.2% | 5kg |
| 35t | 1000m | Yes | Yes | 2,000kg | ±0.1% | 5kg |
| 50t | 1000m | Yes | Yes | 2,000kg | ±0.1% | 10kg |
| 55t | 1000m | Yes | Yes | 4,000kg | ±0.2% | 10kg |
| 100t | 700m | Yes | Yes | 10,000kg | ±0.2% | 50kg |
| 150t | 800m | Yes | Yes | 4,000kg | ±0.1% | 20kg |
Note: The information on this page is indicative only. Please consult our team before undertaking any operations with this device.
